Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||

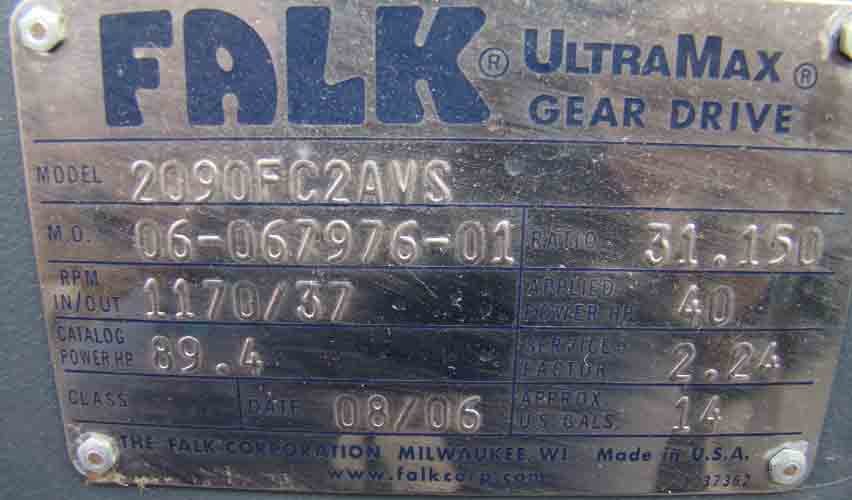

Manufacturer: | FALK | Our ID No. | 006559 | ||||||||||||||||||||||||||||||||
Model: | 2090FC2AV (Viton Seals) | Ratio: | 31.150 | ||||||||||||||||||||||||||||||||
MO# or S/N | 06-067976-01 | Alt. S/N | |||||||||||||||||||||||||||||||||
IP Speed | 1170 RPM | HP rating | 40 HP | Cat. Rating | 89.4 HP | ||||||||||||||||||||||||||||||
OP Speed: | 37 RPM | SF / SC | 2.24 SF | ||||||||||||||||||||||||||||||||
Date | 08/06 | Oil Capacity | 14 US GALS | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Torque Rating | 149,000 Lb-Inches | Shaft Diameters |
High Speed:
2.500 Low Speed: 4.000 |
||||||||||||||||||||||||||||||||
Weight | 1,100 Lbs Approx. | Assembly | IN-LINE | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Notes: |
Condition: |
||||||||||||||||||||||||||||||||||
|

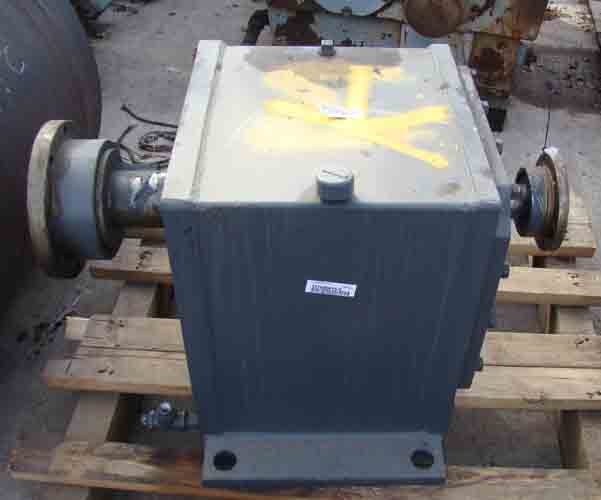

Click on images for larger view. |
