- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007344
Model:       102-3EZ2-06C3 Ratio:       7.610
MO# or S/N       D7-6M3371-01 Alt. S/N
IP Speed       1750 HP rating       10 Cat. Rating
OP Speed:       230 SF / SC       2
Date       8/76 Oil Capacity       1.5 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4420 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   2.000
Weight       190 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.610:1

230 RPM
16.1 HP
1430 RPM
190 RPM
13.4 HP
1170 RPM
155 RPM
11.2 HP
870 RPM
115 RPM
8.50 HP
720 RPM
95 RPM
7.10 HP
Notes:
Condition:


REBUILT 9/95

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

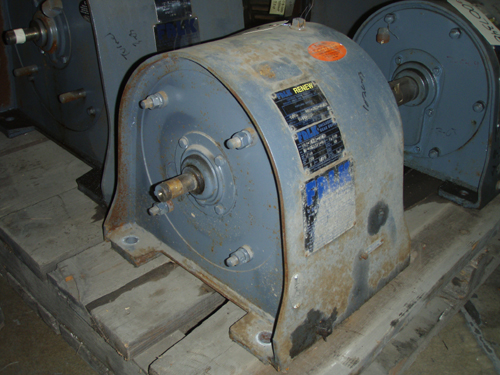

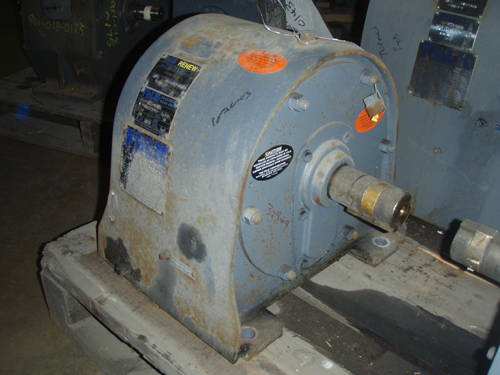

Click on images for larger view.
