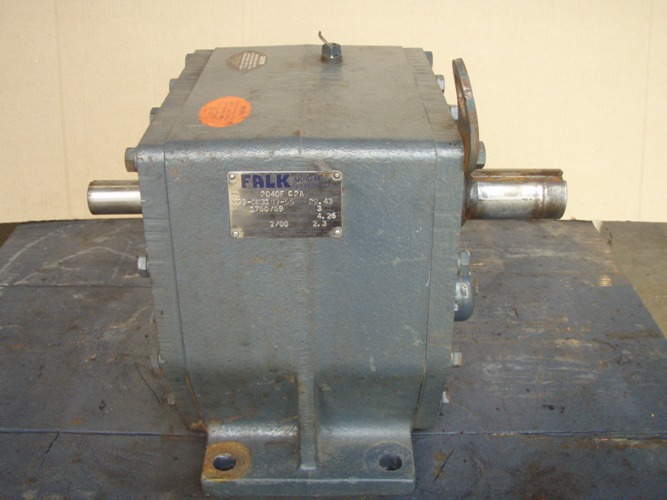

N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.      007800
Model:      2040FC2A Ratio:      29.43
MO# or S/N      99-0M3187-55 Alt. S/N
IP Speed      1750 HP rating      3 Cat. Rating       12.8
OP Speed:      59 SF / SC      4.26
Date      2/00 Oil Capacity       2.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      13,600 Lb-Inches Shaft Diameters High Speed:  1.375
Low Speed:  2.000
Weight       200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
29.43

56 RPM
12.8 HP
1430 RPM
45 RPM
10.9 HP
1170 RPM
37 RPM
8.96 HP
870 RPM
28 RPM
6.69 HP
720 RPM
22 RPM
5.55 HP
580 RPM
18 RPM
4.48 HP
Notes:
Condition: USED


Used Surplus
