Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

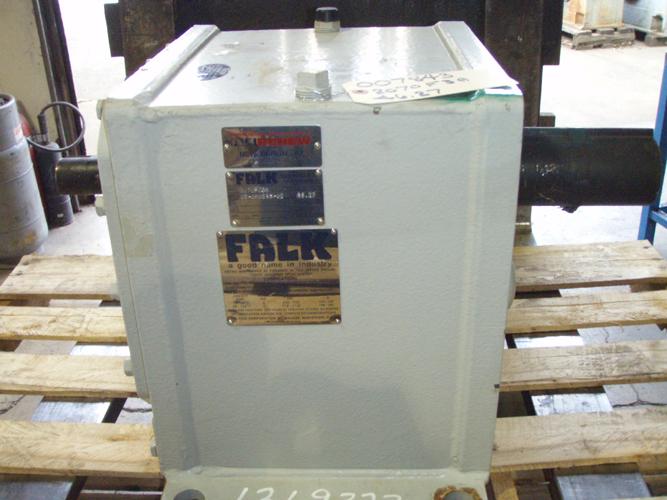

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007843
Model:      2070FC3A Ratio:      46.27
MO# or S/N      08-0R0845-02 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      63,000 Lb-Inches Shaft Diameters High Speed:    1.75
Low Speed:    3.25
Weight      480 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
46.27

37 RPM
37.8 HP
41.5 HP
1430 RPM
30 RPM
31 HP
41.1 HP
1170 RPM
25 RPM
25.5 HP
40.1 HP
870 RPM
18 RPM
19 HP
38.2 HP
720 RPM
15 RPM
15.8 HP
36.7 HP
580 RPM
12.5 RPM
12.7 HP
35 HP
Notes:
Condition:


Rebuilt by Falk Renew New Berlin, WI. with JM Protech Seals

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

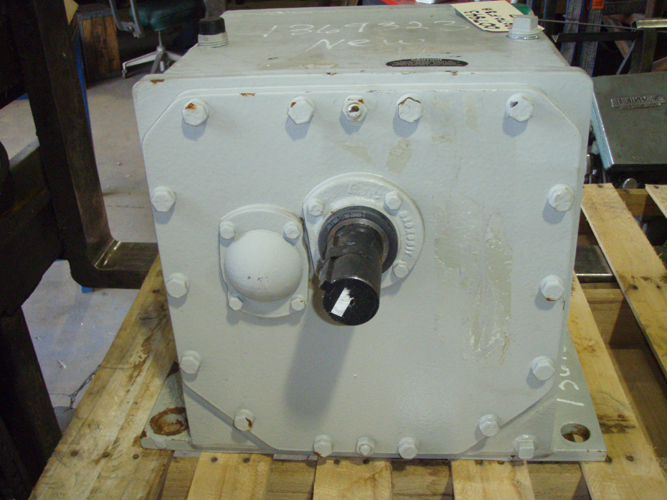

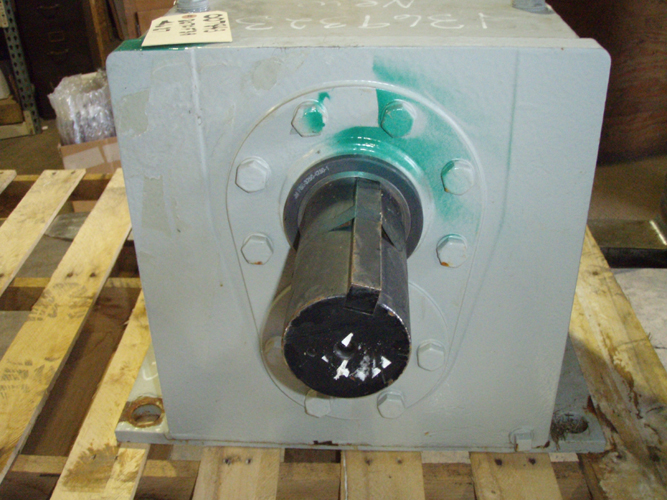

Click on images for larger view.
